GYMNASIUM EQUIPMENT

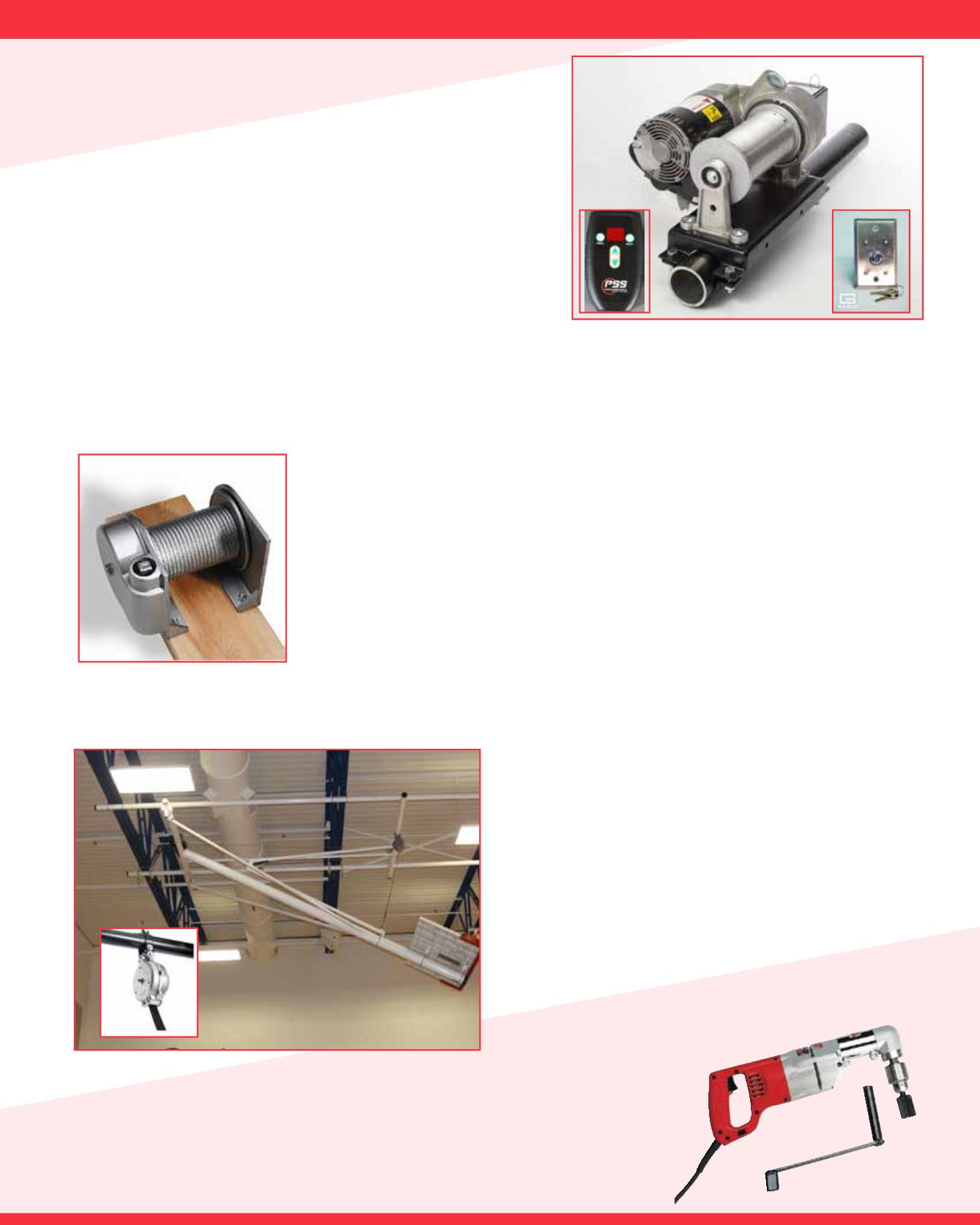

THE ELECTRIC HOIST

is the most convenient way to raise and lower your gymnasium

equipment • Direct drive with no dangerous belts or pulleys • Utilized for ceiling and

swing up wall mounted basketball backstops • High-strength metal gears • Hardened

steel worm gear is captured to take on radial and thrust loads • Our winch is specified

to continuously run at the maximum rated load of 1250 lbs/ 566 kilograms for the motors

rated duty cycle of 20 minutes without sustaining any gear damage. Our tests show that

metal gears consistently outperform other materials under strenuous conditions, especially

plastic • Limit switch makes setting the limits a breeze for installers • Once set properly, the

limit switch will not lose its critical settings due to vibration or environmental conditions •

Powerful, instantly reversing ¾ HP motor (UL listed) is governed to stall at 14 amps • Large

grooved drum ensures long cable life and proper coiling • Basic cable care ensures a long,

safe life • That’s why we machine precise grooves in our drum and include a tension roller

to guarantee correct cable tracking, even in slack conditions • Positive locking in the double

reduction worm gear drive that provides for a strong hold under load • Sealed gear case

with precision ball bearings and a premium seal for a lifetime of maintenance-free operation

• Supplied with single key switch and stainless steel cover • Electrical contractor shall supply

all conduit, wiring, junction boxes and other components not listed above • UL Listed.

1194: ELECTRIC HOIST WITH KEY SWITCH

5 YEAR LIMITED WARRANTY, WEIGHT: 73 LBS, TRUCK, FREIGHT CLASS 70, 24 HOUR SHIP

1197: ELECTRIC HOIST WITH WIRELESS REMOTE RECEIVER

5 YEAR LIMITED WARRANTY, WEIGHT: 77 LBS, TRUCK, FREIGHT CLASS 70, 24 HOUR SHIP

1119

1100

1123

1197

1194

THE MANUAL WINCH

is engineered and built for high strength and durability for those facilities on a budget •

Heavy-duty capacity for 1,000 lb loads • Grooved drum for accurate winding, with a constant pressure roller preventing

the cable from climbing the drum ends • Efficient 40:1 worm gear ratio • Precision thrust bearings provide smooth

operation under load • Maintenance-free gear case offers a lifetime of lifting without hassle • Optimized cable routing

close to the wall to reduce stress to the winch mounts during use to ensure a long and safe cable life • Supplied with

wood buck for mounting to wall and removable handle for operation.

• Precision interlocking steel frame for rigidity and precise alignment

• Semi-enclosed, self lubricating worm gear with load rating of 1000 lbs.

• Grooved drum, for accurate winding, with a constant pressure roller preventing the cable from climbing the drum ends

• Braking is provided by double self-locking worm gearing with a passive uni-directional brake

• Winch is supplied with a cover and mounted directly to the wall

• Winch is supplied with a removable handle with a free turning sleeve that provides an easy, no friction grip.

1123: MANUAL WINCH

5 YEAR LIMITED WARRANTY, WEIGHT: 36 LBS, TRUCK, FREIGHT CLASS 70, 24 HOUR SHIP

The

SAFSTOP SAFETY LOCKING STRAP

is the industry standard

for overhead gymnasium safety • Protect your facility with a tested product

designed to catch a backstop in the slight chance of winch or cable failure • The

Safstop Safety Strap is uniquely manufactured using a multi-pawl design with

inertia plate to promote safety in your gymnasium • Attaches to a fixed position

on your ceiling or wall mounted backstops to prevent the apparatus from falling

if the unit should fail • Universal mounting clamp allows for installation parallel

or 90 degrees to the backboard • Positive locking steel pawls simultaneously

engage the teeth in the all-steel plate housing

1100: SAFSTOP SAFETY LOCKING STRAP

5 YEAR LIMITED WARRANTY, WEIGHT: 20 LBS, TRUCK, FREIGHT CLASS 70,

24 HOUR SHIP

The

PORTABLE ELECTRIC WINCH WINDER

is the most economic means to power all up fold

backstops with manual winches installed • Buy only one portable winch winder and use it for any number of

backstops • Features reversing switch enabling the backstop to be raised or lowered without disengaging winder

• Geometric right angle drive allows for easy handling • Winch winder has heavy-duty single-phase 115-volt

motor.

1119: PORTABLE ELECTRIC WINCH WINDER

1 YEAR LIMITED WARRANTY, WEIGHT: 26 LBS, TRUCK, FREIGHT CLASS 70, 24 HOUR SHIP
