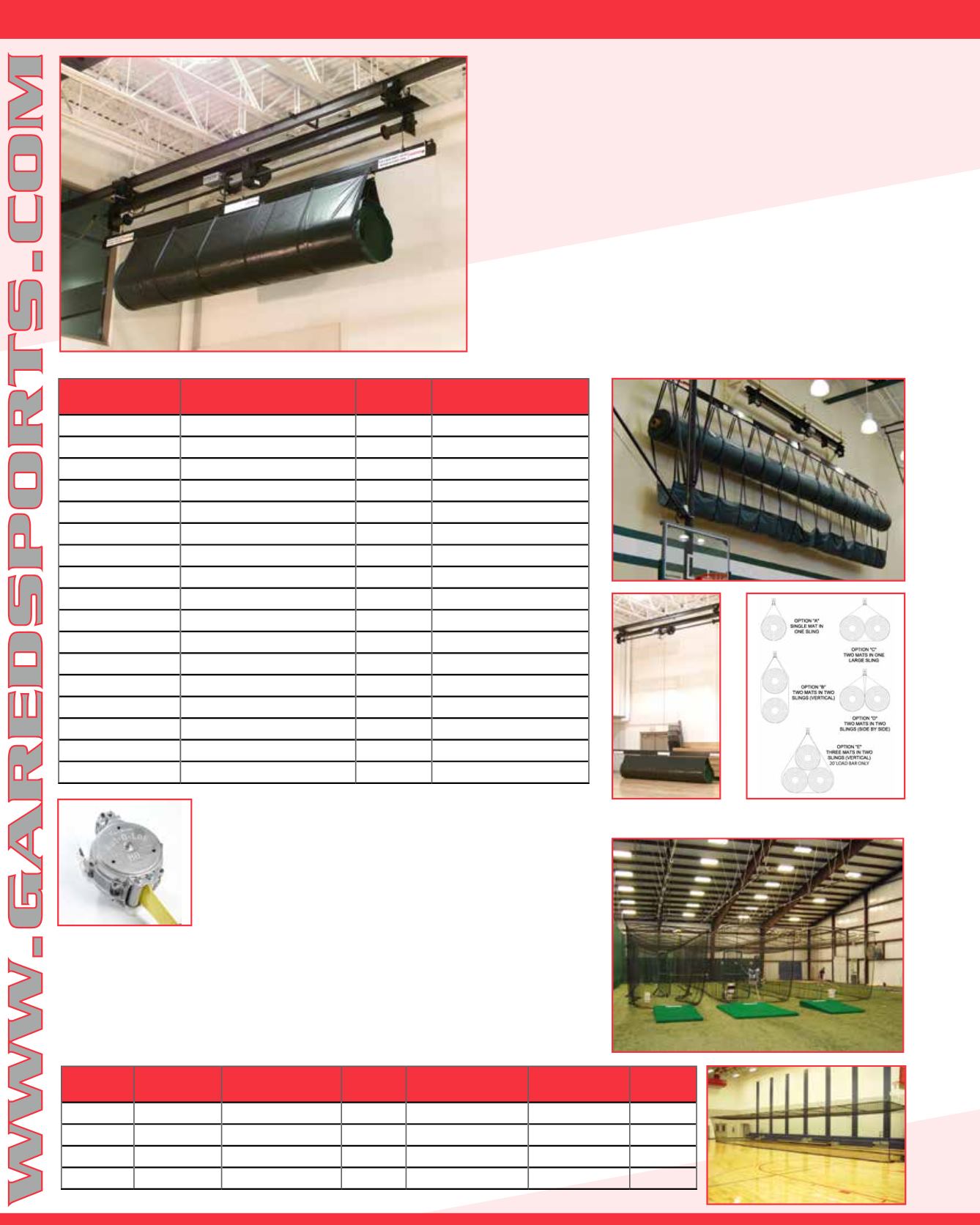

MODEL 4080 MULTI SPORT CAGE
and
MODEL 4081 BATTING CAGE
are electrically
operated practice cages that conveniently suspend from the ceiling structure • Offered in standard sizes
listed below, custom sizes are available to fit your facility needs • Drive shaft raises and lowers system
powered by our curtain hoist • Square mesh with Velcro® corners on sidewall to be raised for entry and
exit on all multi-sport nets • Standard net color is black • Radius pipe on top of the net is custom.
CAGE
MODEL
TYPE OF
CAGE
SIZE
NET
MODEL NET SIZE
MESH SIZE
MESH
COLOR
4080-70 Multi-Sport
10’H x 12’W x 70’L 4087 12’H x 12’W x 70’L 3/4” Square
Black
4081-70 Batting Cage 10’H x 12’W x 70’L 4089 12’H x 12’W x 70’L 1 3/4” Square
Black
4080-55 Multi-Sport
10’H x 12’W x 55’L 4086 12’H x 12’W x 55’L 3/4” Square
Black
4081-55 Batting Cage 10’H x 12’W x 55’L 4088 12’H x 12’W x 55’L 1 3/4” Square
Black
MAT CARRIER SYSTEMS AND INDOOR
SPORTING CAGES
The traveling
MODEL 4095 MAT CARRIER SYSTEM
offers all of the same
features as our standard system, but with the advantage of mobility • Allows mats to
be raised and transported for ceiling level storage or transported to and from balcony
or second level storage areas • Optional sling configurations same as stationary model,
plus the ability to transport three 14’ x 42’ mat sections in an oversize single sling •
The stationary
MODEL 4090/4091 MAT STORAGE SYSTEM
easily stores 1
or 2 mats at ceiling level • Optional sling configurations will store one 42’ to 45’ mat
in a single sling, two 42’ mats in one large single sling or two 42’ mats in two individual
slings, stacked either vertically or horizontally • Operated by 2 horsepower, 208/220
volt, 60 cycle, single or three phase or 460/480V/60 HZ. 3-phase instant reverse
motors • Features 50-1 industrial C-face inline helical gear speed reducer and a 20 ft./
lbs electric brake • Please specify voltage, phase, and sling type.
MAT HOIST
MODEL
TYPE OF LOAD BAR
OPTION
MOVEMENT
DIRECTION
4090-A
40’ Single Load Bar
A Stationary Mat Hoist
4090WM-A
40’ Single Load Bar
A Stationary Mat Hoist
4090-DS-B
40’ Double Load Bar
B
Stationary Mat Hoist
4090WM-DS-B
40’ Double Load Bar
B
Stationary Mat Hoist
4090-DS-C
40’ Double Load Bar
C Stationary Mat Hoist
4090-DS-D
40’ Double Load Bar
D Stationary Mat Hoist
4091-DS-E
20’ Double Load Bar
E
Stationary Mat Hoist
4096-A
40’ Single Load Bar
A Forward Moving Mat Hoist
4096-DS-B
40’ Double Load Bar
B
Forward Moving Mat Hoist
4096-DS-C
40’ Double Load Bar
C Forward Moving Mat Hoist
4096-DS-D
40’ Double Load Bar
D Forward Moving Mat Hoist
4095-DS-E
20’ Double Load Bar
E
Forward Moving Mat Hoist
4097-DS-E
14’ Double Load Bar
E
Mini Stationary Mat Hoist
4098-A
40’ Single Load Bar
A Side Moving Mat Hoist
4098-DS-B
40’ Double Load Bar
B
Side Moving Mat Hoist
4098-DS-C
40’ Double Load Bar
C Side Moving Mat Hoist
4098-DS-D
40’ Double Load Bar
D Side Moving Mat Hoist
MODEL 1109 MAT STORAGE LOCK
Safety system to prevent
free-fall of mat slings due to cable or hoist gearbox failure • Any sudden
surge of speed shall instantly lock and hold the sling in any position.
4090 MAT STORAGE SYSTEM
4095 MAT STORAGE SYSTEM
4081 BATTING CAGES
4080 MULTI-SPORT CAGE
