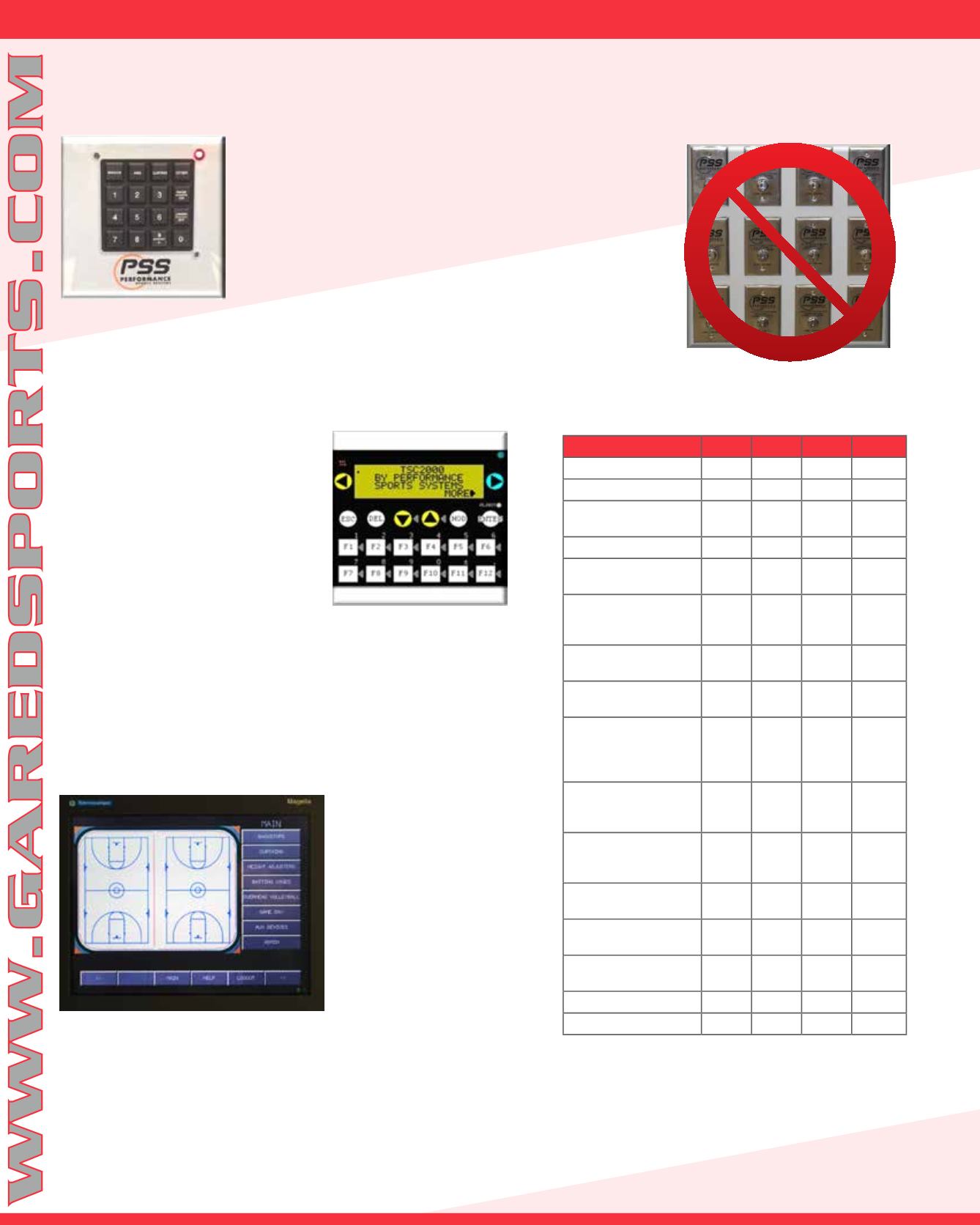

MODEL TSC2000 & TSC2000X TOTAL
SYSTEM CONTROL allows one touch
operation of basketball backstops, divider
curtains, lighting, scoreboards, public address
systems or just about any other electrically
controlled equipment through a wall-mounted
keypad • One keypad and relay box will
operate eight motorized systems and auxiliary
operations (lighting, scoreboards, etc.) •
System uses twenty multi-function keys with
illuminated 20-character LCD display for
easy readout • Operates on 110 volts with keypad communications at 24 volts DC and
mounts in a standard 12” x 12” x 6” inch deep enclosure • Relay panel (24” x 24” x 6”)
can be mounted in any remote location • System will operate equipment individually and
has custom program options for multiple equipment configurations such as “game day”
or “practice” set-up • TSC2000X SYSTEM has expandability to operate additional
equipment by adding relay cards • System can control devices in pairs • Password
controlled to prevent unauthorized use • “Press and hold” button feature prevents
authorized operator from walking away while equipment is in motion • Auto shut-off after
thirty seconds of non-use • Unit is self-diagnostic and has voltage-sensing shutdown feature
in case of overload, and will recommend electrical maintenance if needed.
MODEL TSC2000XL
ADVANCED ELECTRONIC
CONTROL SYSTEM and
TOUCH SCREEN allows one
touch operation of basketball
backstops, divider curtains, lighting,
scoreboards, public address systems
or just about any other electrically
controlled equipment through a wall-
mounted touch screen • One touch
screen and relay box will operate
eight motorized systems and auxiliary
operations (lighting, scoreboards,
etc.) • System uses 7.5” touch screen
• Operates on 110 volts with screen
communications at 24 volts DC and mounts in a standard 12” x 12” x 6” deep enclosure
• Relay panel (24” x 24” x 6”) can be mounted in any remote location • System will
operate equipment individually and has custom program options for multiple equipment
configurations such as “game day” or “practice” set-up • System has expandability for
operating additional equipment by adding relay cards • System can operate up to 6
devices simultaneously • Password controlled to prevent unauthorized use • Press and
hold” button feature prevents authorized operator from walking away while equipment
is in motion • Auto shut-off after thirty seconds of non-use • Unit is self-diagnostic and
has voltage-sensing shutdown feature in case of overload, and will recommend electrical
maintenance if needed • All other electrical, junction and synchronizer boxes not
mentioned above must be furnished and installed by a certified electrical contractor.
TOTAL SYSTEM CONTROLS
TAKE BACK CONTROL OF YOUR GYMNASIUM EQUIPMENT WITH OUR TOTAL SYSTEM CONTROLS SYSTEMS (TSC). OUR TSC
OPTIONS GIVE FACILITY MANAGERS EQUIPMENT MOVEMENT CONVENIENCE WITH FINGER TIP CONTROL!
The MODEL TSC1500 ELECTRONIC CONTROL SYSTEM and
KEYPAD is an economical option for the operation of basketball backstops,
divider curtains, lighting, scoreboards, public address systems or just about any
other electrically operated equipment through a wall-mounted keypad • Unlike
the more advanced TSC models, the TSC1500 does not require factory preset
programming; all functions can be conveniently programmed in the field • This
system is a great low cost alternative for new or retrofit gymnasium installations. •
MAIN FEATURES:
• Singular device operation
• Multiple device operation in groups of up to eight devices
• Can control a maximum of one hundred and sixty devices
• Can handle a total of seventy five possible moving groups
• Can operate fifty auxiliary devices
• Power panel back up operating system
• Less electrical wiring required
• Passcode protected
• No keys required
TSC MODEL 1500 2000 2000X 2000XL
Key Pad X X X
Touch Screen X
Multiple Level Password
Control Protection X X X X
Operate Individually X X X X
Operate in Pairs or in
Groups X X X X
Low Voltage Wiring
from Relay Panel to
Key Pad
X X X X
Self Diagnostic with
Screen Readout X X X
Soft Interlocks permit
Sequential Operation X X X
Operate Auxiliary
Devices, Lighting,
Scoreboards,
Bleachers, etc.
X X X X
Interactive Diagnostics
w/Instant Feedback &
Repair Information
X X X
In Field Upgrade
Capability (Compact
Flash Card)
X X X
Full Color Interactive
LCD Touch Display X
Control Box Secondary
Operation Available X X X X
Protective Cover
Available
X X X X
On Screen Instructions X X X
Event Log X X X
