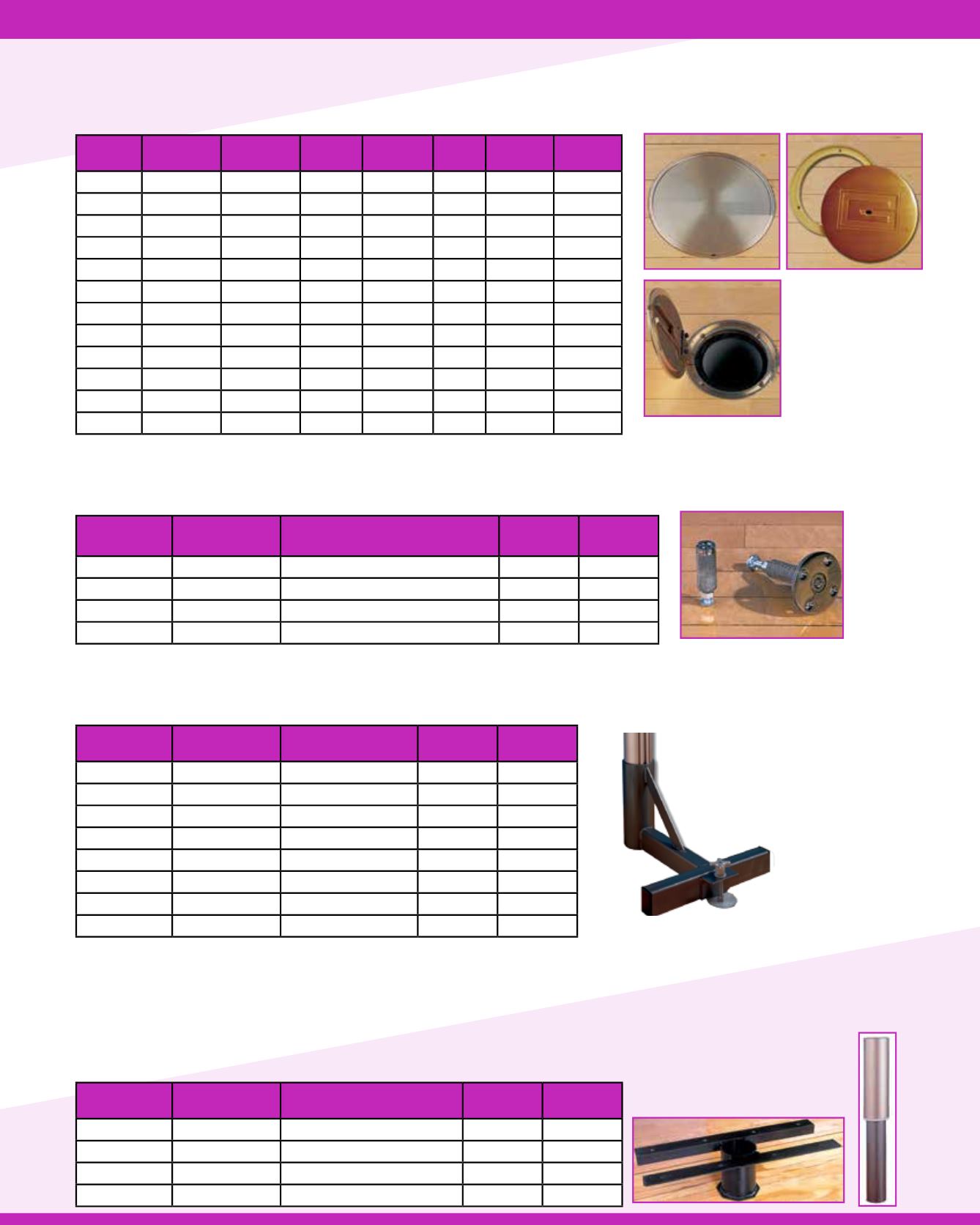

COVER PLATES
are constructed of a durable brass or chrome alloy with a concealed hinge for covering existing floor sleeves • All attachment screws are
concealed when cover plate is in closed position, allowing for a completely flat and safe playing surface • Standard cover plates have a 5” O.D. with a total
diameter of 6 ¼” • Oversized cover plates have a 6 5/8” O.D. with a total diameter of 8” • Please reference chart for cover plate size and finish.
COVER PLATES
,
SEE CHART FOR WEIGHTS, GROUND COURIER SERVICE, 24 HOUR SHIP
MODEL#
TOTAL
DIAMETER
INSIDE
DIAMETER FINISH SWIVEL LOCK
WEIGHT
(LBS)
WEIGHT
(KGS)
6430
6 ¼”
5”
Brass
Yes
Yes
3
1
6431
6 ¼”
5”
Chrome
Yes
Yes
3
1
6423
6 ¼”
5”
Brass
No
No
4
2
6429
6 ¼”
5”
Brass
No
Yes
4
2
6426
6 ¼”
5”
Chrome
No
No
4
2
6428
6 ¼”
5”
Chrome
No
Yes
4
2
6432
8”
6 5/8”
Brass
Yes
Yes
4
2
6433
8”
6 5/8”
Chrome
Yes
Yes
4
2
6424
8”
6 5/8”
Brass
No
No
6
3
6422
8”
6 5/8”
Brass
No
Yes
6
3
6427
8”
6 5/8”
Chrome
No
No
6
3
6425
8”
6 5/8”
Chrome
No
Yes
6
3
FLOOR ANCHORS
allow installation of above floor sleeves for existing facilities where access or floor structure is not ideal for installation of in ground floor sleeves •
Anchors are installed flush with top of playing surface to allow for safe play • Choose from four anchor types, depending on the type of specialty flooring of your facility.
FLOOR ANCHORS,
SEE CHART FOR WEIGHTS, GROUND COURIER SERVICE, 24 HOUR SHIP
MODEL#
STYLE
FLOORTYPEAPPLICATION
WEIGHT
(LBS)
WEIGHT
(KGS)
1015-12-00
Style B
Wood over concrete
1
.5
1026-12-00
Style BX 3 1/4” Anchor wood over concrete
1
.5
1020-12-00
Style C Concrete or synthetic
1
.5
9112
Style E
Wood resting on sleeper or metal clip
1
.5
ABOVE FLOOR SLEEVES
are used with floor anchors when floor will not accept traditional in ground floor sleeves • T-type base provides superior support and
eliminates the need for dangerous cables or rigid supports • Anchor included; choose from four floor anchors styles • Compatible with all GARED volleyball systems.
ABOVE FLOOR SLEEVES,
SEE CHART FOR WEIGHTS, GROUND COURIER SERVICE, 24 HOUR SHIP
MODEL#
TOTAL
DIAMETER
PLACEMENT
WEIGHT
(LBS)
WEIGHT
(KGS)
6414
3”
End Base
26
12
6406
3 1/2”
End Base
26
12
6407
4”
End Base
26
12
6050
N/A
End Base Pad
8
4
6415
3”
Center Base
18
8
6411
3 1/2”
Center Base
18
8
6408
4”
Center Base
18
8
6060
N/A
Center Base Pad
8
4
BOLT-ON SECOND STORY FLOOR SLEEVE ADAPTER
allows for standard floor sleeves on every level of your facility • Unit bolts to underside of
concrete or beam and allows for normal installation of floor sleeves • Constructed of 6 5/8” O.D. heavy-guage steel and .156 wall tubing and steel channels for
ultimate support and stability • Adapter measures 6” O.D. and is for use with all sleeves • Compatible with all GARED volleyball systems.
CUSTOM BASE ADAPTERS
allow your facility to upgrade to GARED volleyball systems without the added expense of replacing your existing floor sleeves •
Custom-designed to retrofit virtually any floor sleeve • Specify the diameter and depth of your existing floor sleeve when ordering.
SLEEVE AND BASE ADAPTER,
SEE CHART FOR WEIGHTS, GROUND COURIER SERVICE, 24 HOUR SHIP
MODEL#
TOTAL
DIAMETER ADAPTERPLACEMENT
WEIGHT
(LBS)
WEIGHT
(KGS)
6401
6”
Second Story Sleeve Adapter
29
13
6283
3”
Custom Base Adapter
8
4
6284
3 1/2”
Custom Base Adapter
8
4
6289
Custom
Custom Base Adapter
8
4
FLOOR ANCHOR
6420 SERIES
6430 SERIES
6420 SERIES
6401
SECOND STORY
ADAPTER
ABOVE FLOOR SLEEVE
BASE ADAPTER
