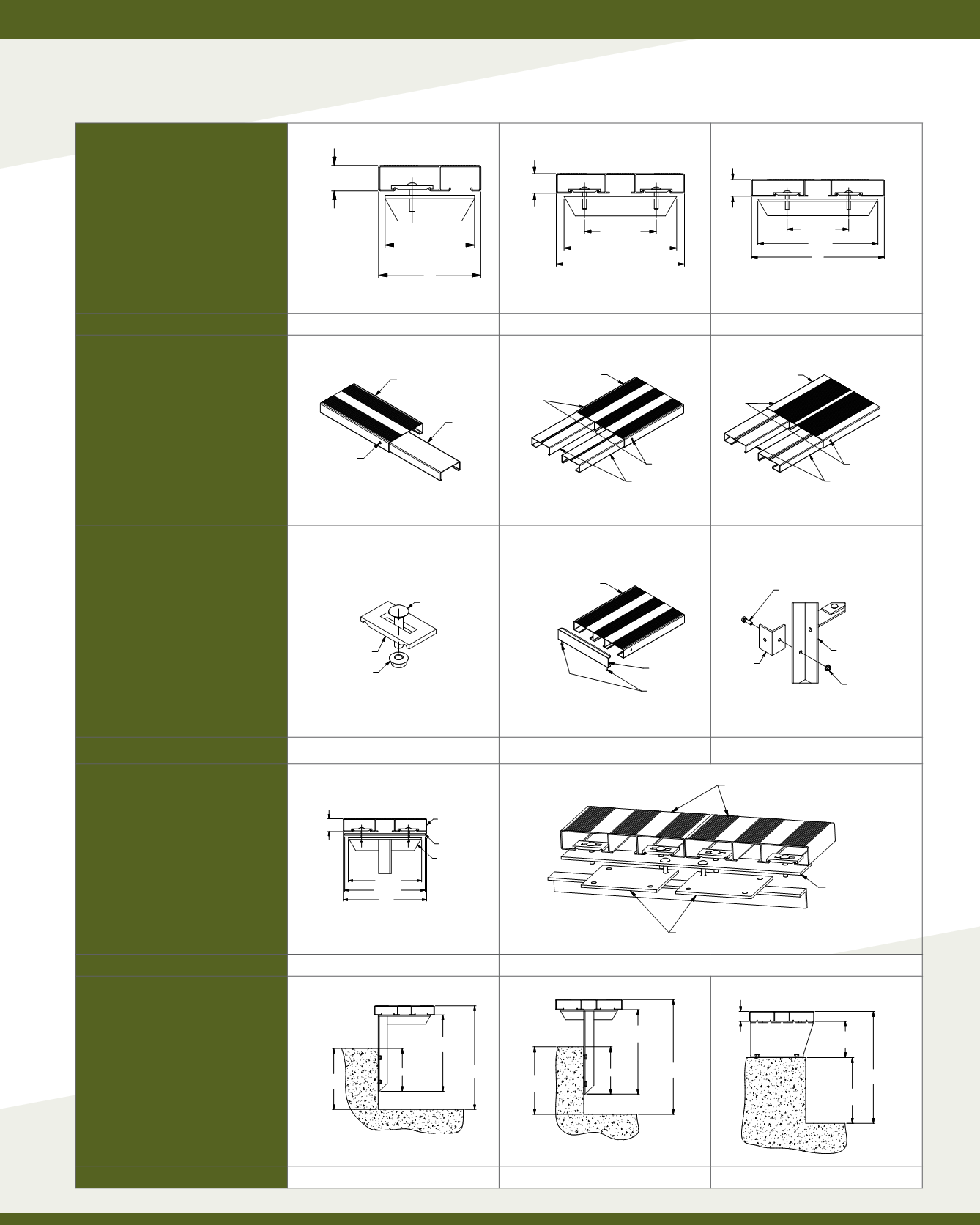

SPECTATOR™ SERIES BLEACHER COMPONENTS
Upgrade your facility & replace old unsafe wood bleacher boards. We can retrofit most existing structures with maintenance free
ALUMINUM PLANKS,
COMPONENTS & BRACKETS
for a fraction of the cost of a new seating system.
PLANKS
6” Plank
10” Plank
12” Plank
SPLICE
6” Splice
10” Splice
12” Splice
PLANK ACCESSORY
Clip Assembly
End Cap
Riser Bracket
SEAT ADAPTER PLATE
Seat Adapter Plate
Double Foot Adapter Plate
BRACKETS
“L” Bracket
“T” Bracket
“Z” Bracket
5 1/4
to
5 3/4
1 1/2
6
1 1/2
9 7/8
8 3/4
5 to 6 1/2
1 1/2
12
10 3/4
5 to 6 1/2
2 x 6 Aluminum Plank
Splice
Pop Rivet
2 x 10 Aluminum Plank
Splice
Pop Rivet
2 x 12 Aluminum Plank
Splice
Pop Rivet
Plank Mtg Clip
5/16" Nut
5/16" Carriage Bolt
2 x 10 Aluminum Plank
Pop Rivet
End Cap
Bleacher Frame
Riser Clip
Mtg Angle
5/16" Hex Bolt
5/16" Nut
17
TYP.
7
Determined
by Riser Height
Riser
Height
17
TYP.
7
Determined
by Riser Height
Riser
Height
17
TYP.
Riser
Height
Determined
by Riser Height
1 1/2
Seat Plank
1 1/2
9 7/8
6 to 81/4
8 1/2 MIN
ExistingSupport
AdapterPlate
2 x 10 Aluminum
Plank
Adapter Plate
Existing Supports
Double 2 x 10
Aluminum Planks
